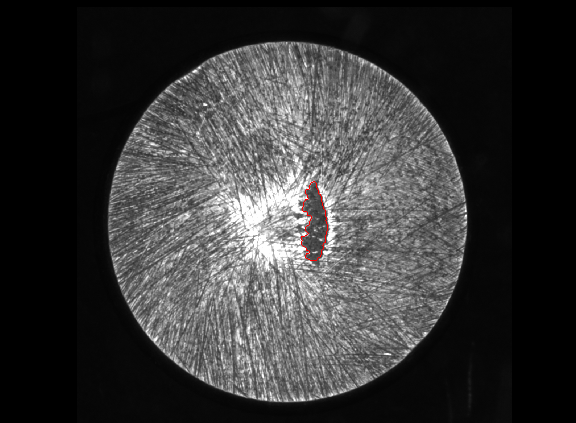

背景太复杂了，求助区域提取方法

1. read_image (Image1, 'C:/Users/njtl003/Desktop/1.bmp')

2. threshold (Image1, Region, 20, 255)

3. opening_circle (Region, RegionOpening, 5.5)

4. erosion_circle (RegionOpening, RegionErosion, 7.5)

5. reduce_domain (Image1, RegionErosion, ImageReduced)

6. mean_image (ImageReduced, ImageMean1, 51, 51)

7. get_image_size (ImageMean1, Width, Height)

8.

9. watersheds_threshold (ImageMean1, Basins, 30)

10. intensity (Basins, ImageMean1, Mean, Deviation)

11. tuple_max (Deviation, Max)

12. tuple_find (Deviation, Max, Indices)

13. select_obj (Basins, ObjectSelected, Indices+1)

14.

15. reduce_domain (Image1, ObjectSelected, ImageReduced1)

16. threshold (ImageReduced1, Region1, 0, 128)

17. fill_up (Region1, RegionFillUp)

18. opening_circle (RegionFillUp, RegionOpening1, 5.5)

19. connection (RegionOpening1, ConnectedRegions)

20. select_shape_std (ConnectedRegions, SelectedRegions, 'max_area', 70)

21.

22.

23. dev_display (Image1)

24. dev_display (SelectedRegions)

复制代码

学习学习

weicc 发表于 2022-12-1 14:53

这个效果看着挺好的，学习一下

学习学习

{:1_1:}{:1_6:}{:1_6:}{:1_6:}{:1_6:}{:1_6:}

顶一下。。。。。。。。。

路过，学习一下{:1_6:}

路过，学习下

路过，学习下

学习下解决思路
